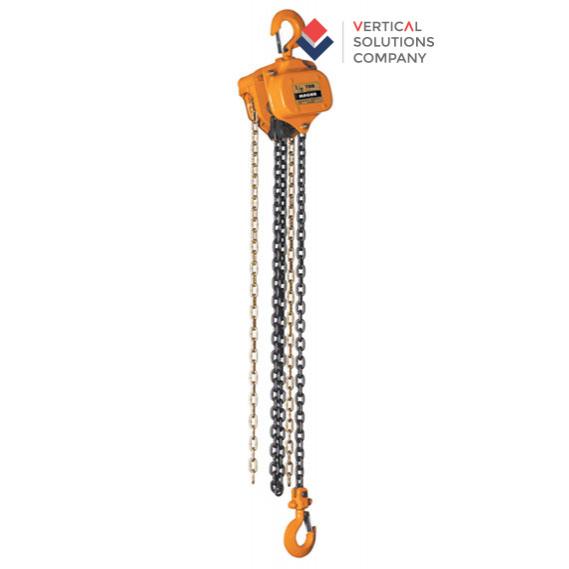

Chain Hoist

Call for Price

Chain Hoist,CH100xx,CH150XX,CH200xx,CH300xx,CH500xx,CH1000xx,CH1500xx,CH2000xx

SKU: CH050xx Category:
Image Variation SKU Price Stock Status Quantity Add To Cart
CH050 Magna ChainHoist copy CH05010 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH05015 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH05020 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH10010 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH10015 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH10020 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH15010 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH15015 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH15020 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH20010 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH20015 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH20020 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH30010 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH30015 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH30020 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH50010 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH50015 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH50020 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH100010 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH100015 CH050xx Call for Price instock
Add to cart
CH050 Magna ChainHoist copy CH100020 CH050xx Call for Price instock
Add to cart

Description

Please Call Us To Order

  • Spur Gear Design for Efficiency, Portability and Economy
  • Load Tested to +125% of Rated Capacity
  • Equipped With a Mechanical Brake for Load Control in Lifting and Spottin
  • Meets ANSI Standards *CE Mark* ISO Certification
  • High Quality Load Chain Meets All International Safety Standards
  • Completely Repairable With Easy Access for Maintenance
  • Parts and Service Available
  • Rugged Steel Casing Protects Gears and Bearings

xx=Lift in Feet- 10′,15′,20′ Standard

Custom Lengths are Available

MODEL CH050xx CH100xx CH150xx CH200xx CH300xx CH500xx CH1000xx CH1500xx CH2000xx
Capacity

(M Tons)

.5T 1T 1.5T 2T 3T 5T 10T 15T 20T
Load Chain(MM) 6.3×19.1 6.3×19.1 7.1×21 7.9×23 7.1×21 9.0×27 9.0×27 9.0×27 9.0×27
Hand Chain(MM) 5×22.8 5×22.8 5×22.8 5×24 5×22.8 5×24 5×24 5×24 5×24
Net Weight(LBS) 24 28 31 45 51 90 172 331 419
No. of Falls 1 1 1 1 2 2 4 6 8
Min. Distance Between Hooks(IN) 12.40 12.40 13.39 14.96 18.70 25.00 29.92 33.46 34.25
LBS Pull to Lift Capacity 53 73 75 75 77 86 90 90×2 90×2
10′ call call call call call call call CALL CALL
15′ call call call call call call call CALL CALL
20′ call call call call call call call CALL CALL



Additional information

Options

CH05010, CH05015, CH05020, CH10010, CH10015, CH10020, CH15010, CH15015, CH15020, CH20010, CH20015, CH20020, CH30010, CH30015, CH30020, CH50010, CH50015, CH50020, CH100010, CH100015, CH100020
